Venturi Tube
Widely used for large line size applications where permanent pressure loss is critical. Piezometric rings are also provided rather than relying on a single pressure tap point.
View Specifications

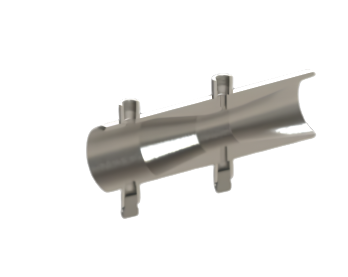

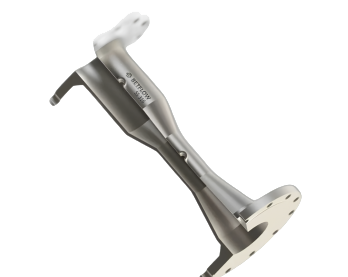

BETFLOW Venturi Tube (BF-VT)
Venturi tubes are highly efficient flow meters, offering minimal pressure drop, stable accuracy, durability against erosion, high-pressure recovery, and adaptability to horizontal or vertical installation. Engineered for durability and minimal upkeep, this corrosion-resistant product is effective in applications involving air, water, vapor, steam, gas, chemical processes, sludge, and slurry.
Bhavyam offers all flow elements under the BETFLOW range of products. Design & Engineering done as per Global Standards to meet challenging process demands. Manufacturing all flow metering solutions as per ISO 5167/ ASME MFC 3M/ BS 1042/ AGA 3/ AGA 8/ RW Miller standards.
Specifications
- Venturi Type: machined venturi, fabricated venturi, cast, etc.
- Venturi Material: carbon steel, SS316 & SS316L as standard. SS304, SS304L, Hastelloy, Monel, Inconel, Titanium & others on request
- End Connection Type: butt weld end / flanged
- End Connection Material: ASTM A105 & ASTM A182 F316 as standard. ASTM A182 F304, ASTM A182 F11, ASTM A182 F22 and others on request
- Testing: PMI, hydrotest, dye penetration test, radiography, flow calibration, and others on request
Applications we serve.
- Custody transfer and fiscal metering in oil, gas, and water pipelines
- High flow rate pipelines requiring minimal permanent pressure loss
- Wastewater and large-bore water treatment flow measurement
- Compressor and pump station flow measurement
- Flow measurement in slurries and liquids with moderate solids content
- Power plant feedwater and cooling water flow measurement
- Applications requiring high accuracy combined with low energy loss
Frequently asked questions.
What is a venturi tube and how does it achieve high accuracy with low pressure loss?
A venturi tube is a DP flow element with a gradually converging inlet, a cylindrical throat, and a gradually diverging outlet. The smooth, gradual change in cross-section reduces turbulence and energy loss compared with an orifice plate, while still producing a precise, predictable pressure drop for flow calculation, resulting in high accuracy with a low permanent pressure loss.
When should a venturi tube be chosen over an orifice plate?
A venturi tube is preferred when a lower permanent pressure loss is important, such as in high-flow or energy-sensitive applications, or when higher accuracy is required for custody transfer or fiscal metering. It is also better suited to liquids with a moderate solids content, since its smooth internal profile is less prone to fouling than a sharp-edged orifice plate.
What straight pipe length does a venturi tube require?
Venturi tubes generally require shorter upstream straight lengths than orifice plates for a given beta ratio, as specified in ISO 5167. The exact requirement depends on the beta ratio and the type of upstream fitting.
Need help with your flow measurement challenge?
Share your fluid properties, line size, flow rate and operating conditions, our engineers respond with a quotation
