Engineered flow metering solutions.

Application-engineered DP-based flow metering for steam, gas, stack, lube oil, condensate / water and AGA compliant gas measurement — with India-based sizing, commissioning and support.

View Solutions
Designed & engineered to
ISO 5167ASME MFC-3MAGA 3EN 10204 3.1

Five application solutions, one metering expertise.

Select your service to view technical data, product image, datasheet and specifications.

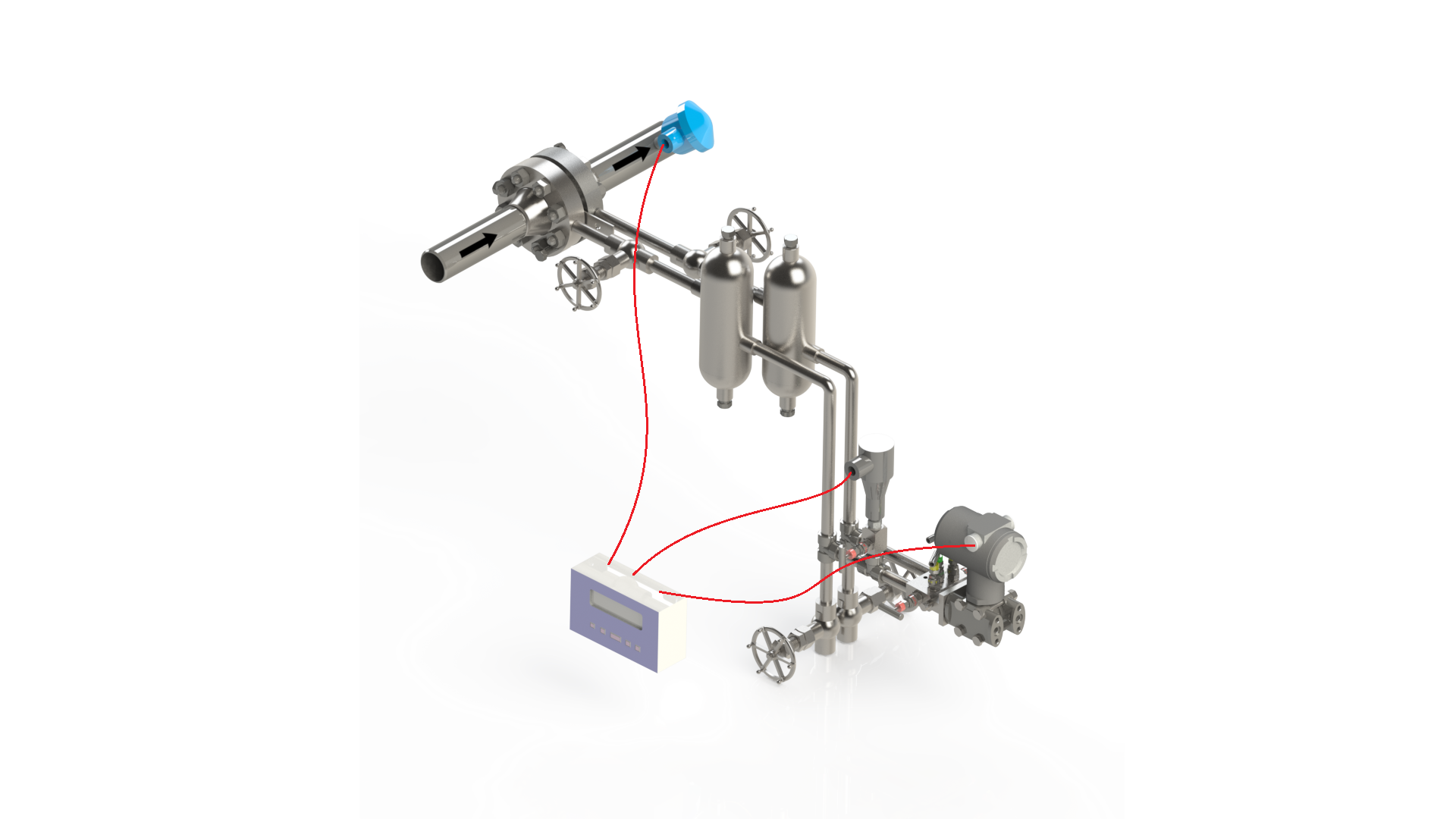

Steam flow meter — socket-weld hook-up assembly
1
● FLOW METERING

Steam Flow Meter

Orifice-Based Steam Flow Metering System — for saturated & superheated steam applications

  • Primary element sized using CONVAL calculation per ISO 5167 for accurate, repeatable measurement.
  • Condensate pots, manifolds (BETLOCK) and impulse piping engineered for high-temperature steam service.
  • Mass flow computation with density compensation from measured temperature and pressure.
  • Material options in carbon steel, alloy steel and stainless steel for process conditions.
Enquire →
Gas flow meter — biogas metering assembly
2
● FLOW METERING

Gas Flow Meter

Compact Orifice-Based Gas Flow Metering System — for natural gas, biogas, compressed air & other dry gases

  • Sized for actual operating pressure, temperature and gas composition for corrected mass / standard-volume flow.
  • Averaging pitot tube option for large ducts and low-pressure-drop installations.
  • BETLOCK manifolds and BETFITT fittings supplied as a complete impulse loop.
  • Flow straightening and upstream / downstream requirements per ISO 5167.
Enquire →
Stack flow meter — auto-purge averaging pitot tube assembly
3
● FLOW METERING

Stack Flow Meter

Averaging Pitot Tube (APT) Based Stack Flow Metering System — for flue gas & industrial monitoring

  • Multi-port averaging sensor for representative velocity measurement across the duct profile.
  • Negligible pressure loss — suited to induced / forced draft and low-pressure systems.
  • Retractable / hot-tap mounting options for installation without shutdown (application dependent).
  • Temperature-compensated mass flow output when combined with temperature measurement.
Enquire →

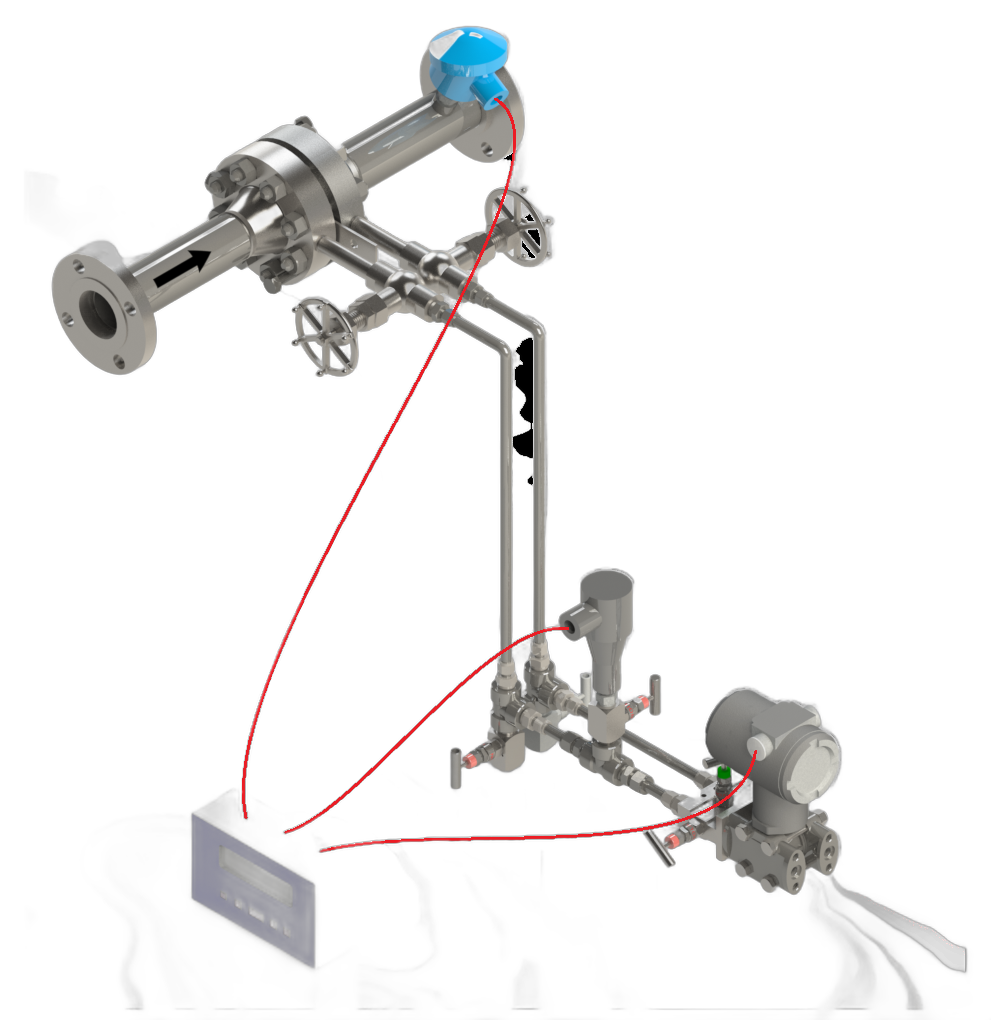

Condensate and water flow meter — complete DP measurement loop
4
● FLOW METERING

Condensate / Water Flow Meter

Orifice Plate Based Water Flow Metering System — complete assembly with impulse piping, manifold, transmitter & totalizer

  • Eccentric / segmental orifice options for condensate with entrained impurities.
  • Venturi tubes for high turndown and low-loss feed-water measurement.
  • Air-vented manifold mounting to keep impulse lines liquid-filled and accurate.
  • Hydrostatic testing and EN 10204 3.1 material certification on request.
Enquire →
AGA compliant gas flow meter — spooled orifice assembly
5
● FLOW METERING

AGA Compliant Gas Flow Meter

AGA-Compliant Orifice Gas Flow Metering System (Honed Metering Pipes with Flow Straightener & Multivariable Transmitter)

  • Orifice plate, carrier and metering tube built to AGA Report No. 3 / API MPMS 14.3 dimensional tolerances with honed-bore metering pipes.
  • Integral flow straightener with AGA-3 straight-run compliance for swirl-free, repeatable flow profile.
  • Multivariable transmitter with AGA-8 compressibility compensation for mass, standard-volume and energy flow.
  • Complete hook-up scope — root valves, impulse tubing, fittings and manifold — with traceable calibration documentation.
Enquire →

Technology partners, locally supported.

ABB, VEGA, Phoenix Contact and WISKA — supplied, commissioned and supported by Bhavyam across India.

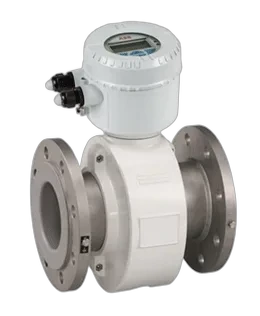

ABB measurement and analytics instruments
7
● TECHNOLOGY PARTNER

ABB Measurement & Analytics

Authorized Value Provider for India.

  • Pressure, temperature, flow & level instruments
  • Analytical, recorders & controllers
  • Genuine ABB supply with warranty
  • ABB-trained application engineering
  • Commissioning & after-sales support
Enquire →

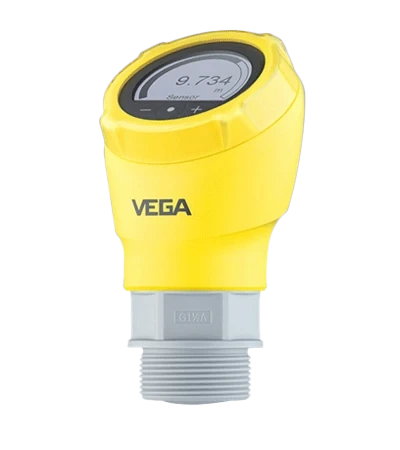

VEGA level and pressure sensors
8
● TECHNOLOGY PARTNER

VEGA Level & Pressure

Radar, point level & pressure sensors.

  • Continuous level — radar to 120 m solids
  • Point level switches up to SIL2
  • Ceramic-cell pressure to 1,000 bar
  • HART, Profibus & Foundation Fieldbus
  • Food, pharma & hygienic options
Enquire →

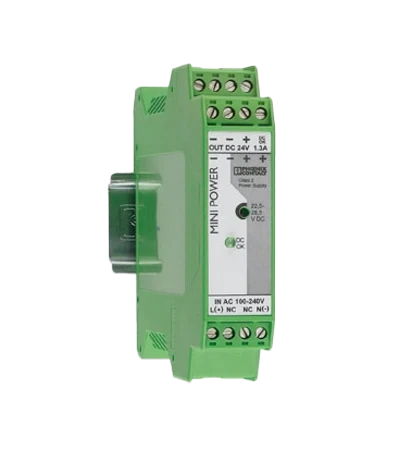

Phoenix Contact factory automation
9
● TECHNOLOGY PARTNER

Phoenix Contact

Connection, electronics & automation.

  • CLIPLINE terminals — push-in to bolt
  • Circular M5–M58 & heavy-duty connectors
  • Surge, UPS & relay modules
  • PV string combiner boxes
  • IP20 to IP69K protection
Enquire →

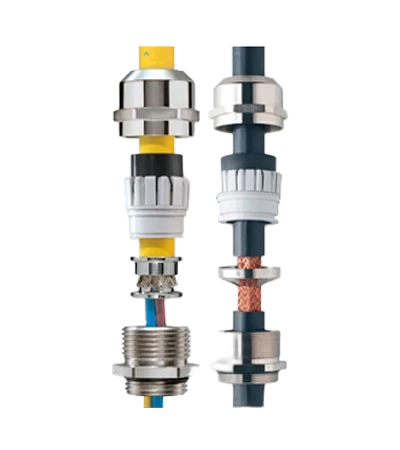

WISKA cable glands and protection
10
● TECHNOLOGY PARTNER

WISKA Cable Systems

Glands, entry & protection systems.

  • Polyamide, brass & stainless glands
  • ATEX/IECEx certified & EMC variants
  • Modular CONMAXX entry systems
  • WISKA Brace® conduits — IP68
  • CLIXX tool-free grommets
Enquire →

Need help sizing a flow meter for your application?

Share your process conditions and we'll recommend the right primary element, manifold and transmitter — with sizing calculations and a competitive quotation.
